A Comprehensive Guide to Sheet Metal Forming
Sheet metal forming involves precision engineering to transform stainless steel, carbon steel, and other materials into essential components for machinery and structures. This process includes bending, cutting, and shaping metal to satisfy the requirements of modern engineering applications.
Sheet metal forming is critical to creating various products, such as cars and appliances. It requires skill, experience, and advanced tools. This process involves using different techniques with metals to produce high-quality components. From selecting materials to shaping processes, sheet metal forming is a precise art that results in durable and strong components for various applications.
Sheet Metal Basics
Sheet metal means thin, flat metal pieces formed by industrial processes. These can be very thin sheets, considered foil or leaf, up to 6 mm (0.25 in) in thickness. Those pieces thicker than 6 mm are considered plate steel or “structural steel.” Sheet metal thickness is usually specified in millimeters worldwide, while the US uses a non-linear gauge. The higher the gauge number, then the thinner the metal sheet.
Definition of Sheet Metal Forming
Sheet metal manufacturing involves creating parts by cutting, bending, and forming thin metal sheets into particular shapes and sizes. The process typically utilizes coating, bending, cutting, and assembly techniques. Sheet metal can be made from diverse materials, such as aluminum, steel, copper, and zinc. It can range in thickness from a few thousandths of an inch to several millimeters.
Sheet metal parts are utilized in cars, airplanes, buildings, and other appliances. The manufacturing process begins with selecting the metal and cutting it into the required size and shape. The metal is then shaped into its final product using various techniques such as rolling, bending, and extruding. The end product can range from simple flat panels to complex three-dimensional structures.
Key Takeaways
- Essential sheet metal forming techniques, such as bending, curling, and ironing, convert flat sheets into intricately shaped components.
- Advanced tools and technologies in sheet metal forming increase productivity, flexibility, cost efficiency, and safety.
- Best material and tool/equipment selection practices help fabricators minimize waste while maintaining quality standards.
Equipment Used in Sheet Metal Forming
Sheet metal forming utilizes various equipment based on the part design and applied process. Here are some of the equipment types commonly used in sheet metal forming:
- Bending machines are used for bending operations.
- Punches and dies are widely utilized for shearing and cutting operations no matter when specific shaped holes are required.
- Shearing molds are utilized for shearing in a straight line.
Sheet Metal Forming Processes
These are the most common forming processes:
Bending
Bending is a process that creates a ‘V,’ ‘U,’ or channel shape with a straight axis in ductile materials. It is used, for example, to make boxes for electrical enclosures and ductwork.
Curling
Curling is a sheet metal forming process used to smooth out sheet metal’s sharp and rugged edges. Sheet metal often involves sharp edges with “burrs” after being produced. Curling is a forming process involving de-burring sheet metal to create smooth edges.
Ironing
Sheet metal can be ironed to achieve a uniform thickness. For example, most aluminum cans are made of ironed aluminum. The raw aluminum sheet metal is initially too thick for beverage cans, so it is ironed to achieve a thinner and more uniform composition. Ironing involves using a punch to force the sheet metal between two dies.
Hydroforming
A barely known sheet metal forming process is hydroforming. Similar to deep drawing, hydroforming involves stretching the blank over a die. The main difference between hydroforming and deep drawing is that deep drawing needs multiple draw reductions, while hydroforming is done in just one step.
Punching
Punching is a sheet metal forming process involving a punch and die set to make holes in sheet metal. The sheet metal is positioned between the punch and die, and the punch presses down and through it to make a hole.
Cold working
Cold working is a process in which metal is shaped at temperatures below its recrystallization point, usually at room temperature. Cold forming techniques are typically grouped into four categories: squeezing, drawing, bending, and shearing. Different from hot working, cold working causes the crystal grains and inclusions to deform along the flow of the metal. This may make the metal harder, stronger, stiffer, and less ductile, which can lead to cracking. Cold forming has various applications, including creating complicated folded shapes, screw heads and threads, and metal tubes.
Drawing
Sheet metal drawing is a process that involves stretching and elongating metal along a curved axis. Tensile forces pull the material, causing it to become thinner and take on a specific shape and thickness.
Explosive forming
This method uses an explosive charge instead of a punch or press. This is suitable for single-unit production processes with a long setup time. It is best employed for materials where setting up a press would be excessively large and costly or when an exceptionally high pressure is needed.
Extrusion
Extrusion is a process that creates objects with a fixed cross-sectional profile by pushing materials through a die of the required shape. Its main advantages are the ability to create very complex cross-sections and work with brittle materials. Additionally, it makes an excellent surface finish and provides considerable design freedom in form. Drawing is a similar process that uses the material’s tensile strength to pull it through the die.
Forging
Forging shapes metal using hammers powered by compressed air, electricity, hydraulics, or steam. Compared to other manufacturing methods, metal forging produces some of the sturdiest parts. Minor cracks are sealed as the metal is heated and pressed, and empty spaces are closed.
The hot forging process breaks up impurities in the metal and redistributes them across the metalwork, which vastly reduces inclusions in the forged part. Additionally, forging strengthens metal by altering its grain structure as it deforms. This process creates a favorable grain structure, making the forged metal sturdier.

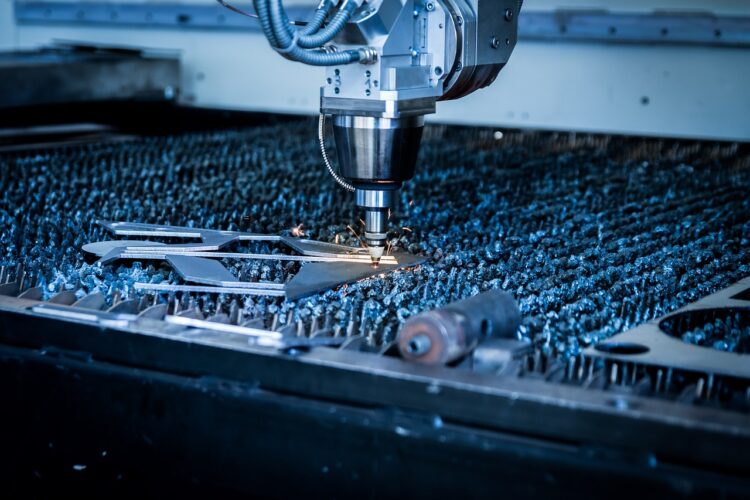

Laser Cutting
Laser cutting is a fabrication technology that removes material from a workpiece using a high-powered laser beam and is becoming more common. Laser cutting allows for designing and producing complex parts and components without custom tools.
Utilizing a high-powered laser allows for faster, more precise metal burning, resulting in smooth edges. CNC laser precision ensures that parts remain uncontaminated by material or waste and are not as damaged as conventional cutting methods.
Hot Working
Hot working involves the plastic deformation of metals at temperatures above their recrystallization temperature. The elevated temperatures allow the metal to stretch without rupturing to a greater extent than in cold and warm forming methods. Moreover, finer detail can be achieved with less force than other forming processes.
Magnetic pulse forming
In magnetic pulse forming, a particular coil is positioned close to the workpiece, replacing the traditional sheet metal forming pushers. When the system activates an intense magnetic pulse, the coil produces a magnetic field that accelerates the workpiece to high speed and onto the die. Due to the magnetic pulse and the extreme deformation speed, this process improves formability without compromising the material’s original strength.
Peening
Peening is the process of working the surface of a metal to enhance its material properties, typically through mechanical methods like hammer blows or blasting with the shot.
Roll forming
Roll forming constantly bends a long sheet metal strip, always coiled steel, into a specific cross-sectional shape or profile. The strip goes through sets of rolls mounted on continuous stands, with each set gradually bending the metal until the desired cross-section is achieved. Roll forming is well-suited for creating uniform profile parts in extended lengths.
Rubber pad forming
Rubber pad forming is a process in which sheet metal is pressed between a polyurethane rubber block and a die. The rubber pads protect the polished or sharpened surface from damage. They can have a general-purpose shape, like a membrane, or they can be machined into the shape of the die or punch. When pressure is applied, the rubber and sheet metal are forced into the die, taking on its shape and forming the part.
Shearing
It, also known as die cutting, is a process that cuts sheet metal without the formation of chips, melting, or burning.
Spin forming
A process in which metal is spun at high speed to form an axially symmetric part, keeping its appearance unchanged when rotated around an axis.
Superplastic forming
Superplastic forming is a process used to create precise and complex components from superplastic materials, such as some fine-grained metals and ceramics. This technique can produce components with double curvature and smooth contours from a uniparted sheet in a single operation. It provides exceptional dimensional accuracy and surface finish without the ‘spring back’ commonly associated with cold forming techniques.
Materials Suitable for Sheet Metal Forming
Sheet metal forming can be used with various metals, depending on the specific application and properties needed from the part. Some common metals for sheet metal forming include:
- Aluminum: Several properties make aluminum an ideal material for forming, including its excellent malleability, corrosion resistance, thermal and electrical conductivity, and outstanding strength-to-weight ratio. It is commonly used in household and industrial appliances, power lines, and aerospace industry components.
- Stainless Steel: Widely utilized in the medical and food industries due to its high strength, corrosion resistance, and excellent formability.
- Hot-Rolled Steel: Relatively easy and inexpensive to manufacture, this material is commonly used when cost is more important than precision, such as in structural components in the construction industry, railroad tracks, and automotive chassis components.
- Cold-rolled steel: It undergoes more manufacturing processes than hot-rolled steel, increasing its tensile strength. It is commonly used in household appliances, aerospace industries, and structural components.
- Copper: Very malleable, it is a good option for sheet metal forming and is commonly used for electrical applications because of its good electrical and thermal conductivity.
- Galvanized Steel: Durable metal with excellent corrosion resistance is often utilized in roofing, air conditioning, and refrigeration applications.
Finishing options
Finishing options for sheet metal projects include:
2. Plating
3. Anodizing
6. Sandblasting
Each method provides specific aesthetics, durability, and corrosion resistance benefits to ensure the metal’s longevity and visual appeal in various applications.
Applications
Sheet metal forming is utilized in nearly every sector of industrial production:
- Automotive industry (e.g. doors, hoods, fenders)
- Aircraft industry (e.g. wings, fuselage)
- Home appliance industry (e.g., sinks, cooker hoods, freezers)
- Construction (e.g. roofing sheets, structural components, ductwork)
- Food industry (e.g. cooking pots, canned goods)
Advantages & Disadvantages
Advantages
Forming sheet metal provides numerous advantages and is essential in precision manufacturing. Utilizing best practices in sheet metal fabrication, this process allows for highly efficient production, enabling the rapid fabrication of large quantities of complex parts without sacrificing quality.
- Versatile Shapes and Applications Available: It allows for creating various shapes while maintaining structural integrity, offering flexibility for diverse applications, from automobile and aircraft parts to electronic components and everyday products like beverage cans and gas cylinders.
- Strength and Durability: Sheet metal has inherent strength and durability, ensuring robust and enduring components.
- Wide Range of Materials: Sheet metal forming can accommodate various materials, including aluminum, stainless steel, and copper, making it suitable for a diverse range of projects.
- Cost-Effective Solution: Compared to processes such as die casting, forging, and extrusion, sheet metal forming provides a more economical solution without compromising quality. Overall costs vary based on part design, material selection, and the number of processing steps needed for production.
- Efficient Production: With the arrival of automation and cutting-edge machinery, sheet metal forming has become highly efficient. It has shorter lead times and the ability to quickly manufacture large volumes of parts, making it an attractive choice for meeting tight production schedules.
These advantages highlight the significance of sheet metal forming in modern manufacturing, laying a solid foundation for industries to innovate and operate more efficiently.
Disadvantages
Although sheet metal forming offers many benefits, there are also disadvantages:
Limited Material Thickness: Sheet metal forming with very thick materials can present challenges, as they may not be as easily manipulated as thinner sheets. This may limit the range of applications for certain industries that require thicker components.
Surface Damage: Forming sheet metal, especially with delicate finishes, can sometimes result in surface damage. Scratches or marks from tools and machinery can impact the final product’s aesthetic quality.
Springback Effect: A common issue in sheet metal forming is the springback effect, where the material attempts to return to its original shape after bending. This phenomenon can cause inaccuracies in the final product, necessitating additional adjustments and controls.
Tooling Costs: Custom tooling may be necessary for highly specialized or complex shapes. This can be expensive and time-consuming to produce, impacting the project’s feasibility, especially for small production runs.
Emerging Trends in Sheet Metal Forming
The sheet metal forming industry constantly changes, bringing the latest trends in robotic automation, additive manufacturing, and advanced materials like carbon fiber and composites. These innovations offer many productivity, accuracy, and versatility advantages, enabling manufacturers to create intricate components with complex geometries.
Adopting strategies for success is crucial to stay ahead in this fast-changing industry. This includes embracing modern technologies and advancements in material science, investing in employee training programs, and seeking advice from other professionals for best practices in working with metals and equipment. It’s also essential to stay informed about customer needs and market trends and to update machinery to ensure high-quality fabrication processes for sheet materials.
Summary
As we explore the intricacies and advancements of sheet metal forming, it’s evident that this field extends beyond simply bending and shaping metal. It involves pushing the limits of what is achievable in manufacturing. From the processes’ precision and adaptability to the products’ durability and effectiveness, sheet metal forming plays a crucial role in modern industry.
